EV Charging Adapters: What They Are, Why They’re Needed?
Electric vehicle (EV) charging adapters are essential tools that enable EVs to connect with various charging stations, especially when the vehicle’s charging port doesn’t match the available charger. As the EV market expands, understanding these adapters becomes crucial for seamless and safe charging experiences.
What Are EV Charging Adapters?
EV charging adapters are physical devices that allow a vehicle with one type of charging port to connect to a charging station with a different connector standard. With various charging formats in use globally — like Type1, Type2, CCS1, CCS2, CHAdeMO, GBT, and Tesla’s NACS — adapters ensure that EV owners can charge their vehicles regardless of the charger type available.
Why Are EV Charging Adapters Needed?
The need for adapters arises from the fragmented and evolving nature of EV charging standards. Here’s why:
1. Multiple Standards Over Time
Different charging standards were developed at different times. Older EVs and charging stations use legacy standards like CHAdeMO, while newer vehicles and infrastructure are adopting CCS1 or CCS2 or NACS. This has created a mismatch, where:
- Old vehicles can’t charge at new stations, and
- New vehicles can’t charge at old stations.
For example, in North America, CHAdeMO was widely used before CCS1 became the standard. As a result, many CHAdeMO users found it increasingly difficult to find compatible stations — leading to the need for CCS1-to-CHAdeMO adapters.
2. Proprietary Systems
Some automakers, like Tesla, initially used proprietary charging systems. Later when Tesla opened its charging network to other brands, those vehicles didn’t have compatible ports. Thus:
- Tesla-to-CCS1 and CCS1-to-Tesla (NACS) adapters became necessary.
In short, adapters reduce user inconvenience and make charging infrastructure more accessible across generations and brands of EVs.
How Do EV Charging Adapters Work?
EV adapters fall into two broad categories based on communication protocol compatibility:

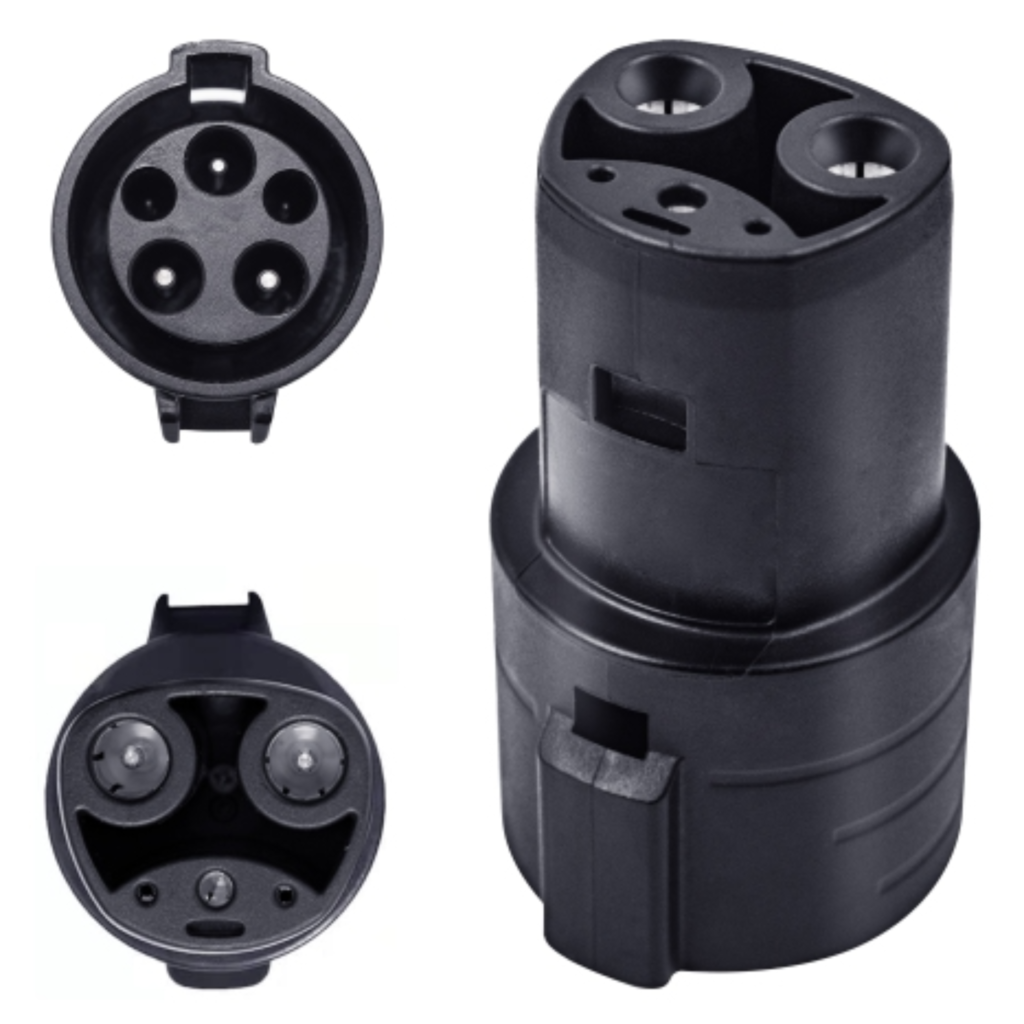

1. Adapters with Same Communication Standard
These are simpler and only require physical connection remapping:
Example: CCS1 ↔ NACS (Tesla)
Both use ISO 15118 / DIN 70121 protocol over PLC, and share similar HV (High Voltage) and LV (Low Voltage) signal configurations.
What’s inside?
Since these interfaces share DIN or ISO 15118 protocol and use the same high-voltage (HV) and low-voltage (LV) signal lines, the adapter just maps physical pins correctly. There’s no active electronic conversion required.

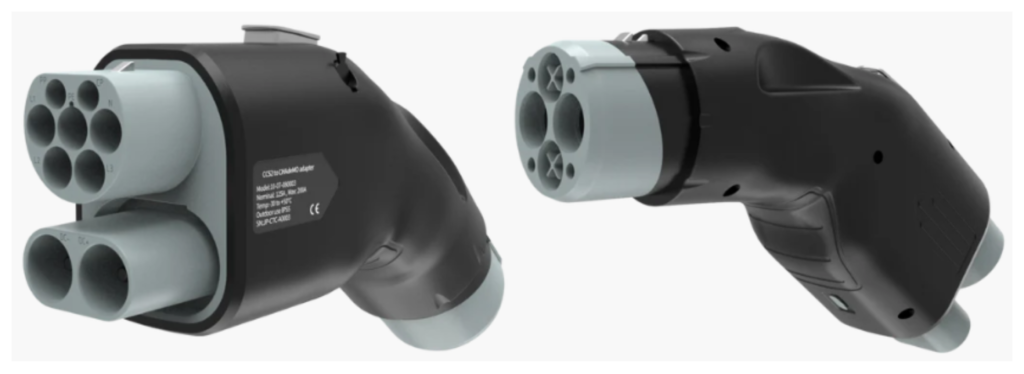

2. Adapters with Different Communication Standards
These are more complex and need embedded electronics to translate between protocols:
Example:
CCS1 ↔ CHAdeMO
- CCS1 uses PLC (Power Line Communication) based on ISO 15118
- CHAdeMO uses CAN bus for communication
What’s inside?
To bridge this gap, the adapter must:
- House electronic components to convert communication protocols.
- Include signal line adaptation.
- Contain a low-voltage power source (e.g., small battery) to power internal electronics. This battery may be:
- Externally charged
- Or charged from the HV supply during charging.
- Externally charged
Such adapters also require internal contactors on both power lines for safety and isolation, especially if there’s any software or hardware failure in the adapter.
Common EV Charging Adapters in the Market
- Type1 to NACS (Tesla)
- NACS (Tesla) to Type1
- CCS1 to NACS (Tesla)
- NACS (Tesla) to CCS1
- CHAdeMO to CCS1
- CCS1 to CHAdeMO
- CHAdeMO to CCS2
- CCS2 to CHAdeMO
Challenges with EV Charging Adapters
While adapters offer flexibility, they also come with significant challenges—especially when poorly designed or not approved by OEMs:
- Lack of Locking Mechanisms: According to standards, the charging cable must be locked during charging to prevent disconnection under load. Cheap adapters might skip this, risking arcing or terminal damage if disconnected under power.
- Vehicle Not Detecting Adapter: If the EV doesn’t recognize an adapter is in use, it may start charging at full power without necessary protections—leading to overheating of adapters.
- Inadequate IP Rating: Poorly designed adapters can pose electrical hazards in wet conditions due to water ingress.
- Improper Contact or Undersized HV Lines: These can lead to overheating, posing fire or safety risks.
- No Internal Isolation: In adapters bridging two communication systems (like CCS1 to CHAdeMO), if no internal contactors are included, high voltage could be exposed to user in case of failure—posing serious shock hazards.
Why Choose Only OEM-Approved or OEM-Designed Adapters?
1. Designed for Compatibility
OEM-approved adapters are tested for:
- Protocol translation accuracy
- Mechanical fit
- Thermal management
2. Built-In Safety Features
OEM adapters include:
- Locking mechanisms
- Thermal sensors
- High IP ratings
- Proper cable sizing and contact material
3. Warranty and Liability
Using unapproved third-party adapters may void your EV’s warranty and shift liability in case of charging damage or safety incidents.
Key Considerations When Choosing an Adapter
- Check Communication Compatibility – Know whether the adapter simply maps pins or needs protocol conversion.
- Confirm Locking Mechanism Exists – Prevent disconnection under power.
- Verify IP Rating – For outdoor use, waterproofing is essential.
- Look for OEM Certification – Non-OEM options can void warranties and pose serious risks.
- Ensure Isolation Features – Especially for cross-standard adapters, verify if internal contactors are used.
Summary
EV charging adapters are vital tools in a world with multiple charging standards, offering flexibility during the global transition to electric mobility. However, this flexibility should never come at the cost of safety. Whether you’re adapting your Tesla to a CCS1 charger or reviving an old CHAdeMO EV in a CCS-dominated market, make sure your adapter is OEM-approved, safe, and fully functional — because the right connection matters, both electrically and mechanically.
